Cummins KTA19 Engine Parts – Oil System Components

A reliable oil system is essential to maintaining the performance and longevity of your Cummins KTA19 engine. Whether operating in a marine environment, power generation facility, or heavy industrial application, the KTA19 requires clean oil under constant pressure and efficient thermal control to keep internal components protected. Diesel Pro Power offers a comprehensive catalog of oil system components for the KTA19, including oil pumps, coolers, filters, pressure switches, gaskets, O-rings, and related accessories.

All parts are engineered to original Cummins specifications to ensure exact fitment and uncompromising performance, with fast shipping and expert support from a team trusted by over 40,000 professionals worldwide.

Cummins Oil Pumps for KTA19 Engines

High-Volume Oil Pump for KTA19 Series

The oil pump is the heart of the KTA19’s lubrication system, responsible for circulating oil through the engine block, bearings, camshaft galleries, piston cooling jets, and turbocharger feed lines. Diesel Pro Power offers a factory-grade oil pump compatible with a wide range of CPL configurations for the KTA19, KT19, and QSK19.

Applications: Compatible with multiple CPL configurations
Design: Gear-type oil pump with high flow rate
Function: Provides constant oil pressure to main, rod, and cam bearings
Build: Cast iron housing with precision-ground steel gears
Ideal For: New builds, complete overhauls, and correcting low oil pressure issues

Installing a new oil pump is recommended during any major rebuild, especially if oil pressure readings have declined or if bearing surfaces show signs of wear due to lubrication failure.

Oil Coolers for Cummins KTA19 and QSK19

Dual Oil Cooler Configuration

Cummins KTA19 engines utilize two oil coolers per engine to maintain optimal oil temperature and prevent viscosity breakdown under extreme operating conditions. Diesel Pro Power offers both oil cooler units required for a complete setup.

Cooling Method: Water-to-oil heat exchange
Application: Marine and high-load stationary engines
Quantity Required: 2 per engine
Compatibility: KTA19, QSK19, KTA38, and KTA50 models

By maintaining proper oil temperature, the coolers help prevent thermal damage to bearings and reduce carbon buildup in oil passages. Routine inspection and replacement are essential in marine environments where corrosion can degrade cooler effectiveness.

Oil Cooler Gaskets and Seals

Diesel Pro Power stocks a full selection of oil cooler sealing components, including:

Oil cooler cover gaskets – Seals the top-side housing where oil flows into the cooler
O-rings for oil cooler cores – Ensures leak-free seating between cooler and block
Oil cooler housing gaskets – Critical for resealing after cooler service or replacement

These components are often overlooked during cooler servicing but are essential for preventing oil and coolant leaks. Replace gaskets and O-rings every time the cooler is removed to ensure system integrity.

Marine Zinc Anodes for Oil Coolers

To protect your oil cooler from internal corrosion in saltwater applications, Diesel Pro Power offers zinc anodes designed for Cummins marine engines.

Thread Size: 3/8” NPT brass plug
Zinc Length: 1 inch
Function: Sacrificial corrosion protection for fuel and oil cooler cores
Application: Marine-only systems

Installing fresh zincs as part of your regular maintenance routine extends the service life of your oil cooler and prevents damage from electrolysis.

Oil Filters and Related Tools

Spin-On Oil Filter for Cummins KTA19

Oil filtration is critical in removing contaminants that can degrade bearing surfaces and accelerate engine wear. Diesel Pro Power provides high-capacity spin-on oil filters compatible with the KTA19 platform.

Thread Type: Standard 2 1/4” - 12 UN
Size: 4.65” diameter x 11.69” height
Filtration Media: High-density cellulose/synthetic blend
Use Case: Daily operation, extended-service maintenance intervals

Spin-on filters are quick to replace and should be changed with every oil change or as specified by your engine's service interval.

Oil Filter Removal Wrench

To streamline oil filter service, Diesel Pro Power offers a professional-grade oil filter wrench designed to fit filters between 4-21/32” and 5-5/32” in diameter. It is compatible with Cummins, Detroit Diesel, and Caterpillar engines.

Grip Range: Adjustable for multiple filter sizes
Build: Heavy-duty steel strap design
Use Case: High-torque removal in confined spaces

Using the correct wrench ensures safe, damage-free removal and reduces service time during routine oil changes.

Oil Pan and Adapter Gaskets

Oil Pan Adapter Gasket

Diesel Pro Power offers a high-quality oil pan adapter gasket for the lower portion of the KTA19 crankcase. This gasket seals the interface between the oil pan and the block or pan adapter plate.

Material: High-temperature oil-resistant composite
Use Case: During oil pan removal, leak repair, or bottom-end rebuilds
Fitment: KTA19 and QSK19 compatible

Replacing this gasket is essential when resealing the lower crankcase after a crankshaft service, oil pump replacement, or pan cleaning.

Hand Hole Cover Gaskets

The hand hole covers located on the engine block allow internal inspection of the crankcase and connecting rods. Diesel Pro Power stocks the matching cover gaskets to reseal these inspection ports.

Function: Seals access holes to prevent oil leaks and contamination
Recommendation: Replace any time the hand hole cover is removed
Use Case: Crankshaft inspection, connecting rod bearing service

These small gaskets play a critical role in maintaining crankcase cleanliness and pressure balance.

Oil Pressure Monitoring Components

Oil Pressure Switches – Make/Break Configurations

Accurate oil pressure readings are vital for engine protection and early diagnostics. Diesel Pro Power carries a range of make/break pressure switches in 5, 10, 20, and 27 PSI ratings.

Use Case: Triggers alarms or shutdowns based on oil pressure threshold
Thread Type: 1/8” NPT for universal fit
Electrical Interface: Make/break function engages or disengages based on pressure
Compatible Engines: Cummins and Detroit Diesel platforms

These switches are commonly installed in marine engines, generator sets, and industrial units to prevent catastrophic engine failure due to oil pressure loss.

Gauges for Oil System Monitoring

Mechanical and Electric Oil Pressure Gauges

Diesel Pro Power offers a wide selection of oil pressure gauges to pair with your pressure switches or to monitor oil system performance independently.

Mechanical Gauges: Provide direct pressure readings without electrical input
Electric Gauges: Available in 12-volt and 24-volt configurations
Gauges with Alarm: Built-in sensors trigger audible or visual warnings

Whether retrofitting a dashboard or building a custom engine panel, we offer gauges compatible with your existing sensors and pressure ranges.

Why Proper Oil System Maintenance Matters

The Cummins KTA19 is a high-output engine that depends on consistent lubrication and oil temperature control. Key functions of a properly maintained oil system include:

Lubrication of bearings, gears, and piston skirts
Oil-based piston cooling via jets beneath the pistons
Turbocharger lubrication and cooling
Hydraulic control of valve actuators (in certain versions)
Debris and particulate removal via filtration

Neglecting the oil system can lead to:

Premature bearing wear or failure
Crankshaft or camshaft scoring
Turbocharger damage
Overheating due to insufficient oil cooling
Severe oil leaks leading to rapid oil loss

Replacing worn components such as pumps, seals, gaskets, and filters at regular intervals is a cost-effective way to prevent catastrophic failures and extend engine service life.

Troubleshooting Common Oil System Issues

Low Oil Pressure

Possible Causes: Worn oil pump, clogged pickup, leaking pressure switch, worn bearings
Solution: Replace oil pump, check bearing clearances, confirm switch and gauge function

Oil Leaks at Cooler or Filter

Possible Causes: Worn O-ring or gasket, damaged cooler housing
Solution: Replace all cooler gaskets and O-rings during service, inspect housing surfaces

Overheating or Oil Breakdown

Possible Causes: Restricted oil cooler, marine zinc corrosion, insufficient oil flow
Solution: Replace oil coolers, flush cooling system, inspect zincs for degradation

Inaccurate Gauge Readings

Possible Causes: Faulty sender, bad electrical ground, incorrect gauge calibration
Solution: Test sender with manual gauge, verify wiring, replace with matched sensor and gauge

Best Practices for Oil System Service

Use manufacturer-approved oil grades and intervals
Replace oil filters with every oil change
Flush oil coolers during major service
Inspect zincs quarterly in marine applications
Replace gaskets and O-rings whenever parts are removed
Install new hand hole cover gaskets after internal inspections
Test oil pressure switches annually
Monitor gauge readings daily on high-hour applications

Trusted by 40,000+ Diesel Pro Power Customers Worldwide

With a focus on reliability, availability, and expert support, Diesel Pro Power remains the go-to source for Cummins KTA19 oil system components. From oil pumps to pressure switches, we supply everything needed to keep your engine’s lubrication and cooling systems operating at full capacity.

In-stock availability for all major components
Fast global shipping for marine and industrial users
Professional support from diesel experts
Engine-matched parts for trusted fitment

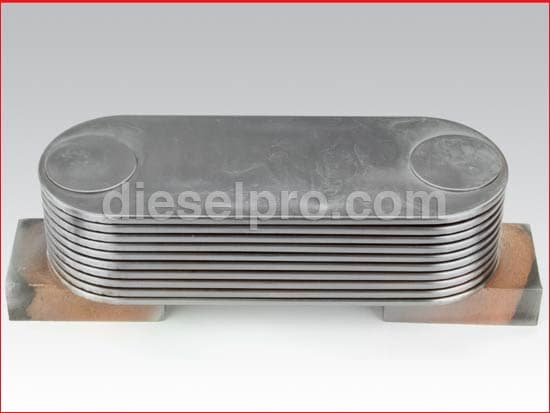

Cummins Oil Cooler
