Oil System Components for Cummins ISM Engines

The oil system is one of the most critical aspects of the Cummins ISM engine, ensuring that every moving component is lubricated, cooled, and protected from friction and wear. Proper oil circulation and pressure not only extend engine life but also maintain peak performance under heavy-duty industrial and marine operating conditions. At Diesel Pro Power, we carry a complete line of Cummins ISM oil system components, trusted by more than 40,000 satisfied customers worldwide.

This section covers oil pumps, gaskets, filters, coolers, pressure switches, and related tools that ensure the ISM engine continues to run reliably in demanding applications.

Cummins ISM Oil Pump

The heart of the lubrication system is the oil pump. For Cummins ISM engines, the oil pump draws oil from the sump and delivers it under pressure throughout the engine block, cylinder head, bearings, camshaft, and turbocharger.

High-Pressure Lubrication: Maintains consistent oil pressure for bearings and journals.
Durability: Designed for extended service life under extreme load conditions.
Compatibility: Common with related Cummins platforms including L10, M11, and QSM engines.

Replacing a worn oil pump is essential when oil pressure drops or when performing an overhaul. A properly functioning pump prevents catastrophic damage by maintaining oil flow to critical engine components.

Cummins ISM Oil Pan Gasket

The oil pan gasket forms a reliable seal between the oil pan and engine block, keeping oil contained and preventing leaks. For the ISM engine, the gasket is designed to handle the vibration and thermal expansion associated with industrial operation.

Leak Prevention: Eliminates oil seepage at the base of the block.
Durable Construction: Made with high-quality materials resistant to heat and oil saturation.
Engine Compatibility: Works with ISM engines and also with L10, M11, and QSM models.

Cummins ISM Oil Filters

Oil filters are the first line of defense against contaminants that can damage bearings, pistons, and camshafts. For the ISM engine, spin-on type oil filters are most common.

Filtration Efficiency: Removes dirt, soot, and metallic particles from circulating oil.
Threaded Spin-On Design: Simple installation and replacement.
Extended Service Intervals: Built for heavy-duty use in commercial and marine settings.

A clean filter ensures oil maintains its protective qualities and that the pump is not restricted during circulation.

Oil Filter Removal Wrench

Maintaining the ISM engine is made easier with the correct service tools. An oil filter removal wrench is designed to fit spin-on oil filters used in Cummins, Detroit Diesel, and Caterpillar engines.

Adjustable Fit: Ranges from 4-21/32" to 5-5/32".
Durable Steel Construction: Built to withstand repeated heavy-duty use.
Time-Saving Tool: Prevents damage to filter housings during removal.

Cummins ISM Oil Cooler

Oil not only lubricates but also absorbs heat generated within the engine. The Cummins ISM oil cooler regulates oil temperature by transferring excess heat to the engine’s coolant system.

Thermal Regulation: Prevents oil breakdown caused by overheating.
Durability: Constructed for marine and industrial duty cycles.
Efficiency: Maintains optimal viscosity and lubrication quality.

When upgrading or rebuilding, replacing a clogged or damaged oil cooler ensures proper oil temperature control, preventing engine overheating and wear.

Oil Cooler Gaskets & Seals

Supporting the oil cooler are gaskets and seals that prevent leaks and maintain pressure integrity.

Gaskets: Typically used in pairs, providing a tight seal around cooler housings.
Seals: Prevent coolant and oil from mixing while withstanding high operating temperatures.

Replacing gaskets and seals whenever the cooler is serviced helps maintain system reliability.

Cummins ISM Hand Hole Gasket

The hand hole gasket ensures a tight seal at inspection points in the oil system. It is specifically designed to resist oil saturation and heat expansion.

Easy Access: Allows inspection without full disassembly.
Leak Prevention: Maintains pressure integrity.
Reusable Applications: Common across L10, M11, ISM, and QSM platforms.

Cummins ISM Fuel & Oil Pressure Switches

Pressure switches monitor lubrication pressure, ensuring the engine is protected against oil starvation. In Cummins ISM engines, these switches are calibrated at different PSI ratings to fit various applications.

5 PSI Make/Break: Protects against extremely low oil pressure.
10 PSI Make/Break: A common setting for standard operations.
20 PSI Make/Break: Used in higher-load applications.
27 PSI Make/Break: Ensures maximum protection in heavy-duty service.

These switches can also trigger warning alarms or shutdown systems when pressure drops below safe levels.

Oil Pressure Gauges

Monitoring oil pressure in real-time is vital for the protection of Cummins ISM engines. Gauges are available in both mechanical and electric types.

Mechanical Gauges: Provide direct readings without electrical input.
Electrical Gauges (12V and 24V): Compatible with different electrical systems.
Alarms & Indicators: Some models include built-in alarms for added safety.

Importance of Oil System Maintenance in Cummins ISM Engines

Routine inspection and replacement of oil system components extend the operational life of the ISM engine. Neglecting oil system health can lead to:

Bearing failure due to oil starvation.
Overheated oil leading to reduced viscosity and breakdown.
Contamination from particles, soot, or coolant intrusion.
Costly repairs that can be prevented with timely component replacements.

Why Choose Diesel Pro Power for Cummins ISM Oil System Parts

Trusted Worldwide: Over 40,000 satisfied customers.
Fast Shipping: Global distribution with streamlined logistics.
Quality Assurance: Every part is tested for durability and reliability.
Easy Online Ordering: A user-friendly catalog with expert support.

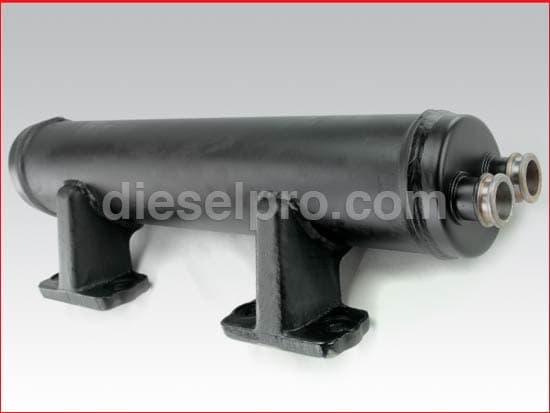

Cummins Oil Cooler
