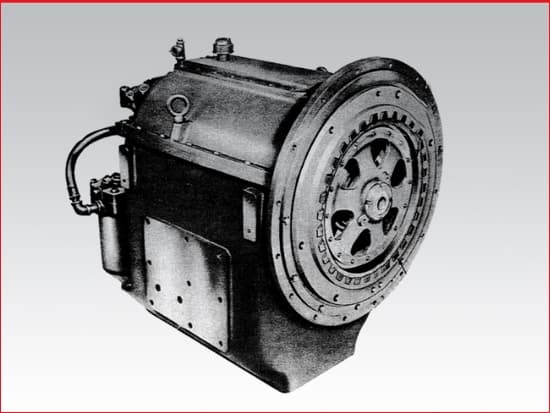

Twin Disc MG521 marine transmission ratio 4 to 1 - rebuilt
Price$ 52,173.00
In StockCan Ship Today Worldwide for orders placed before 2:pm EST
Quantity
1
Frequently added by mechanics
Most orders include these - Avoid delays - Ships together
Mechanical Gauges Standard
Sold with refundable core deposit. See details
Twin Disc MG521 marine transmission with a ratio of 4.087 to 1 - Remanufactured
Includes:
- Mechanical selector valve assembly (Control valve)
- Pilot housing flange
- Oil pump
- Oil level gauge
- Output flange
It does not included the Drive ring (sold separately)
General information:
- Oil capacity 12 US gallons.
- Pressure range 190-220 PSI @ 1800 rpm and 180 degrees farenheit
- Maximum speed 3000 RPM
- Operating: Oil viscosity SAE 40W engine oil, temperature 150 - 185 degrees farenheit.
- Operating: Oil viscosity SAE 50W engine oil, temperature 185 - 200 degrees farenheit.
- Oil pump capacity 30 gpm at 2000 rpm
Change oil and clean filter screen every six months or 1000 hours operation, whichever comes first.
After placing your order online for this item, we will contact you to request the specific SAE housing size
weight: 2415 Lbs.
