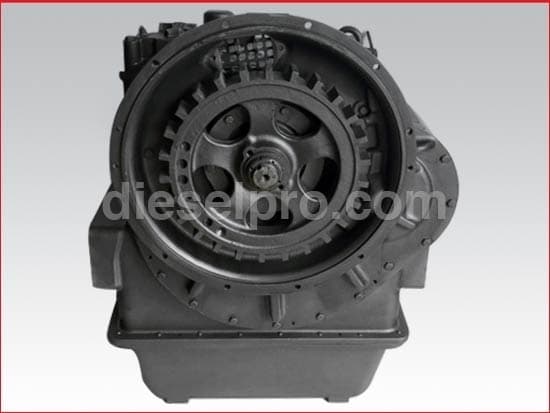

Twin Disc MG514CHP marine transmission ratio 4.5 to 1 - rebuilt

Twin Disc 514 marine transmission for hight horse power engines, ratio of 4.5 to 1 - Remanufactured

Includes:

• Mechanical selector valve assembly (Control valve)
• Pilot housing flange
• Oil pump
• Oil level gauge
• Output flange

It does not include the Drive ring (sold separately)

General information:

• Horse Power: 600 - 870
• Oil capacity 9 US gallons.
• Pressure range 200-227 PSI @ 1800 rpm and 180 degrees farenheit
• Maximum speed 3000 RPM
• Operating: Oil viscosity SAE 30W engine oil, temperature 150 - 185 degrees farenheit.
• Operating: Oil viscosity SAE 40W engine oil, temperature 185 - 210 degrees farenheit.
• Oil pump capacity 18.7 gpm at 2500 rpm

Change oil and clean filter screen every six months or 1000 hours operation, whichever comes first.

After placing your order online for this item, we will contact you to request the specific SAE housing size

See Warranty
